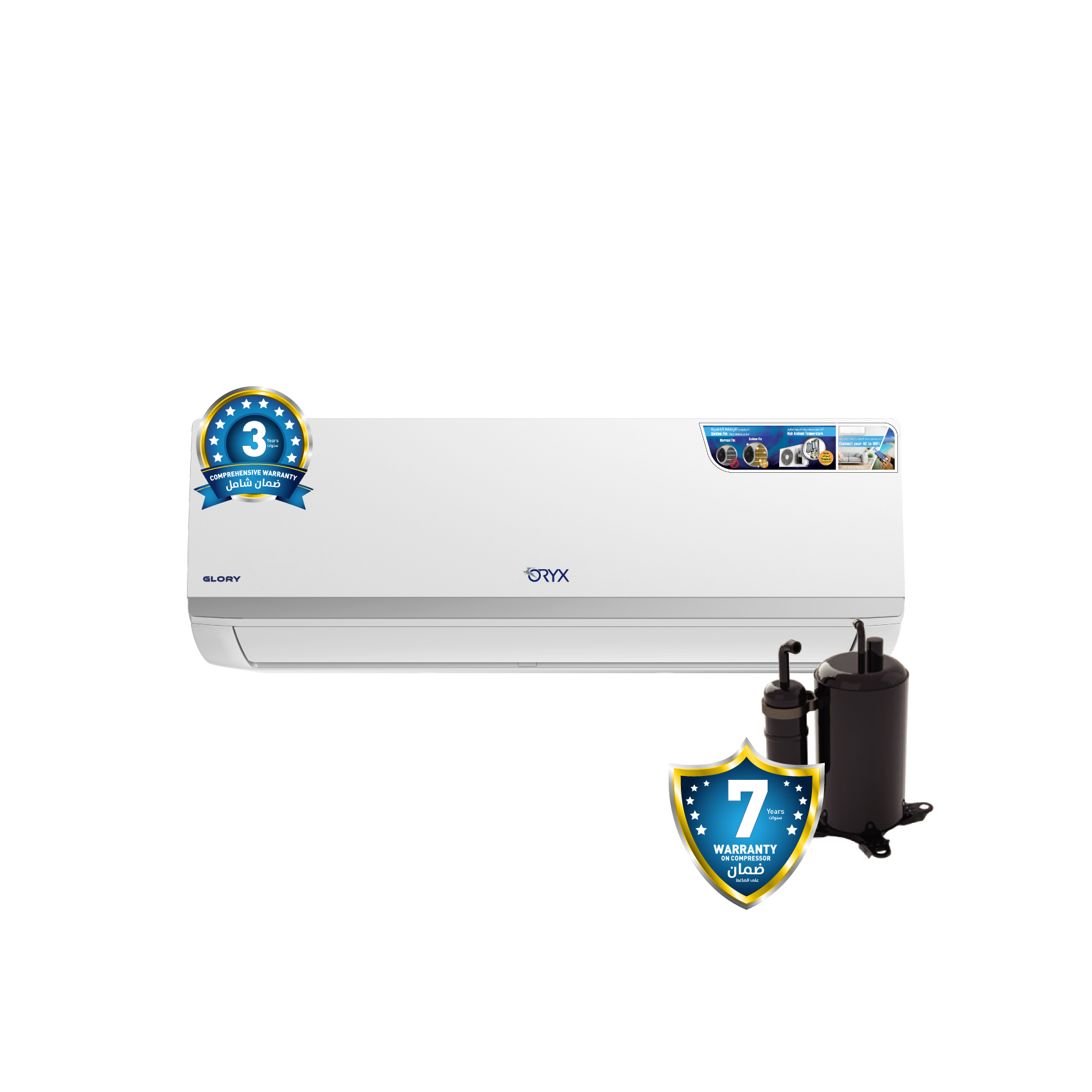

ORYX Glory Split Air Conditioning 2 TON – Piston With 6 Stars

3,999.00 QAR

Close
Price Summary
  • 3,999.00 QAR
  • 3,999.00 QAR
  • 3,999.00 QAR
In Stock
Services:
  • Unit Warranty:
    3 Years
  • Compressor Warranty:
    7 Years
Estimated Delivery:
07 December - 08 December
SKU: OASGEA-24CP41W Categories: , Tags: ,
Description
  • ORYX GLORY Split AC
  • 24365 BTU
  • Cool only.
  • Piston, R410A Gas, 5STAR.
  • Self-Clean & WIFI Technology.
  • Golden Fins
  • Wall Mounted Type.
  • 3 Years unit Warranty
  • 7 Years warranty for Compressor

Split and Floor Standing AC price includes Standard installation

With a 5 meter pipe Kit. Additional piping will be with additional extra charges

For Split:

1Ton – 2.5Ton 75 QAR per meter

3Ton 85 QAR per meter

Outdoor bracket for split it is 150 QAR

For Floor Standing:

3Ton – 5Ton 85 QAR per meter

Outdoor bracket for floor stand 200 QAR.

Technical Specification
ModelOASGEA-24CP41W
Power supplyV,Hz,Ph220-240V,1Ph,50Hz
Cooling （T1）CapacityBtu/h24365
InputW2085
Rated currentA9.10
EER（Btu/h)/W11.610
Cooling(T3)CapacityBtu/h19600
InputW2353
Rated currentA10.30
EER（Btu/h)/W8.330
HeatingCapacityW/
InputW/
Rated currentA/
COPW/W/
Max. input consumptionW3000
Max. currentA17
Starting currentA68
CompressorModelAW 5524B
TypeRECIPROCATING
BrandKK
CapacityBtu/h20499
InputW2050
Rated current(RLA)A9.38
Locked rotor Amp(LRA)A68
Thermal protector4042KGE656-12
Thermal protector positionINTERNAL
CapacitoruF60
Refrigerant oil/oil chargemlPolyolester Oil  /1142
Indoor fan motorModelZKFP-58-8-1-10
InputW64
OutputW58
CapacitoruF/
Speed(Hi/Mi/Lo)r/min1450/1200/1080/980
Indoor coila.Number of rows2
b.Tube pitch(a)x row pitch(b)mm21x13.37
c.Fin spacingmm1.3
d.Fin type (code)Hydrophilic aluminium
e.Tube outside dia.and typemmΦ7,innergroove tube
f.Coil length x height x widthmm820x336x26.74
g.Number of circuits4
Indoor air flow (Turbo/Hi/Mi/Lo)m3/h1350/1150/1000/900
Indoor noise level (Turbo/Hi/Mi/Lo)dB(A)50/47/44/41
Indoor unitDimension(W*D*H)mm1080x226x335
Packing   (W*D*H)mm1155x315x415
Net/Gross weightKg13.9/17.6
Outdoor fan motorModelYKT-60-6-40-7
InputW133
OutputW60
CapacitoruF5
Speedr/min870
Outdoor coila.Number of rows2.6
b.Tube pitch(a)x row pitch(b)mm21x13.37
c.Fin spacingmm1.4
d.Fin type (code)Unhydrophilic aluminium
e.Tube outside dia.and typemmΦ7,innergroove tube
f.Coil length x height x widthmm1010x756x26.74+598x756x13.37
g.Number of circuits6
Outdoor noise leveldB(A)59
Outdoor unitDimension(W*D*H)mm946x410x810
Packing  (W*D*H)mm1090x500x885
Net/Gross weightKg74.1/78.6
Refrigerant typegR410A/2120g
Design pressureMPa4.8/2.3
Refrigerant pipingLiquid side/ Gas sidemm(inch)Φ9.52/Φ15.9(3/8"/5/8")
Max. refrigerant pipe lengthm25
Max. difference in levelm10
Connection wiring2.5x4
Plug type2.5x3/no-plug
Thermostat typeRemote Control
Operation temperature℃17~30
Room  temperatureIndoor(cooling/ heating)℃17～32/---
Outdoor(cooling/heating)℃18～52/---
Application area   (Cooling Standard)m233-48
Qty’per 20’ /40’ /40'HQ44/92/108
