Home » Products » ORYX Glory Split Air Conditioning 1.5 TON – Piston With 6 Stars
Lightbox

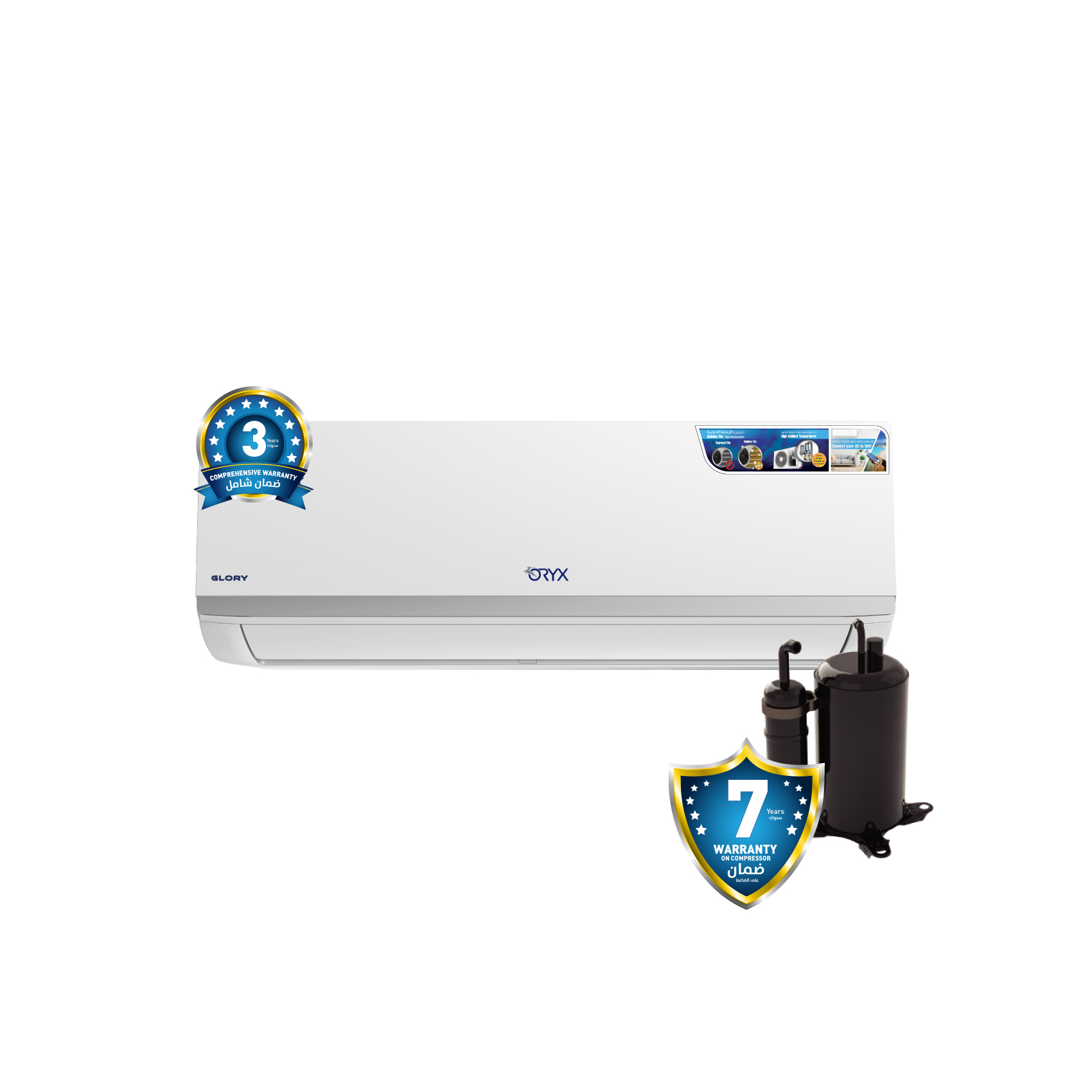

ORYX Glory Split Air Conditioning 1.5 TON – Piston With 6 Stars

3,299.00 QAR

Close
Price Summary
  • 3,299.00 QAR
  • 3,299.00 QAR
  • 3,299.00 QAR
In Stock
Services:
  • Unit Warranty:
    3 Years
  • Compressor Warranty:
    7 Years
Estimated Delivery:
07 December - 08 December
SKU: OASGEA-18CP41W Category: Tags: , ,
Description
  • ORYX GLORY Split AC
  • 20126 BTU
  • Cool only.
  • Piston, R410A Gas, 5STAR.
  • Self-Clean & WIFI Technology.
  • Golden Fins
  • Wall Mounted Type.
  • 3 Years unit Warranty
  • 7 Years warranty for Compressor

Split and Floor Standing AC price includes Standard installation

With a 5 meter pipe Kit. Additional piping will be with additional extra charges

For Split:

1Ton – 2.5Ton 75 QAR per meter

3Ton 85 QAR per meter

Outdoor bracket for split it is 150 QAR

For Floor Standing:

3Ton – 5Ton 85 QAR per meter

Outdoor bracket for floor stand 200 QAR.

Reviews (0)
0 ★
0 Ratings
5 ★
0
4 ★
0
3 ★
0
2 ★
0
1 ★
0

There are no reviews yet.

Be the first to review “ORYX Glory Split Air Conditioning 1.5 TON – Piston With 6 Stars”

Technical Specification
ModelOASGEA-18CP41W
Power supplyV,Hz,Ph220-240V,1Ph,50Hz
Cooling （T1）CapacityBtu/h20126
InputW1670
Rated currentA7.45
EER（Btu/h)/W11.976
Cooling(T3)CapacityBtu/h16500
InputW1910
Rated currentA8.50
EER（Btu/h)/W8.639
HeatingCapacityW/
InputW/
Rated currentA/
COPW/W/
Max. input consumptionW2500
Max. currentA14
Starting currentA51
CompressorModelAW 5517B
TypeRECIPROCATING
BrandKK
CapacityBtu/h15702
InputW1600
Rated current(RLA)A7.45
Locked rotor Amp(LRA)A51
Thermal protector4042KGE656-1
Thermal protector positionINTERNAL
CapacitoruF40
Refrigerant oil/oil chargemlPolyolester Oil  /1142
Indoor fan motorModelZKFP-58-8-1-10
InputW64
OutputW58
CapacitoruF/
Speed(Hi/Mi/Lo)r/min1280/1100/1020/950
Indoor coila.Number of rows2
b.Tube pitch(a)x row pitch(b)mm21x13.37
c.Fin spacingmm1.3
d.Fin type (code)Hydrophilic aluminium
e.Tube outside dia.and typemmΦ7,innergroove tube
f.Coil length x height x widthmm820x336x26.74
g.Number of circuits4
Indoor air flow (Turbo/Hi/Mi/Lo)m3/h1250/1080/985/880
Indoor noise level (Turbo/Hi/Mi/Lo)dB(A)48/45/42.5/40
Indoor unitDimension(W*D*H)mm1080x226x335
Packing   (W*D*H)mm1155x315x415
Net/Gross weightKg13.8/17.3
Outdoor fan motorModelYKT-60-6-40-7
InputW133.0
OutputW60
CapacitoruF5
Speedr/min870
Outdoor coila.Number of rows1.6
b.Tube pitch(a)x row pitch(b)mm21x13.37
c.Fin spacingmm1.4
d.Fin type (code)Unhydrophilic aluminium
e.Tube outside dia.and typemmΦ7,Inner groove tube
f.Coil length x height x widthmm1015x756x13.37+598x756x13.37
g.Number of circuits4
Outdoor noise leveldB(A)59
Outdoor unitDimension(W*D*H)mm946x410x810
Packing  (W*D*H)mm1090x500x885
Net/Gross weightKg67.7/72.3
Refrigerant typegR410A/1750g
Design pressureMPa4.8/2.3
Refrigerant pipingLiquid side/ Gas sidemm(inch)Φ6.35/Φ15.9(1/4"/5/8")
Max. refrigerant pipe lengthm25
Max. difference in levelm10
Connection wiring2.5x3
Plug type2.5x3/no-plug
Thermostat typeRemote Control
Operation temperature℃17~30
Room  temperatureIndoor(cooling/ heating)℃17～32/---
Outdoor(cooling/heating)℃18～52/---
Application area   (Cooling Standard)m227-39
Qty’per 20’ /40’ /40'HQ44/92/108
