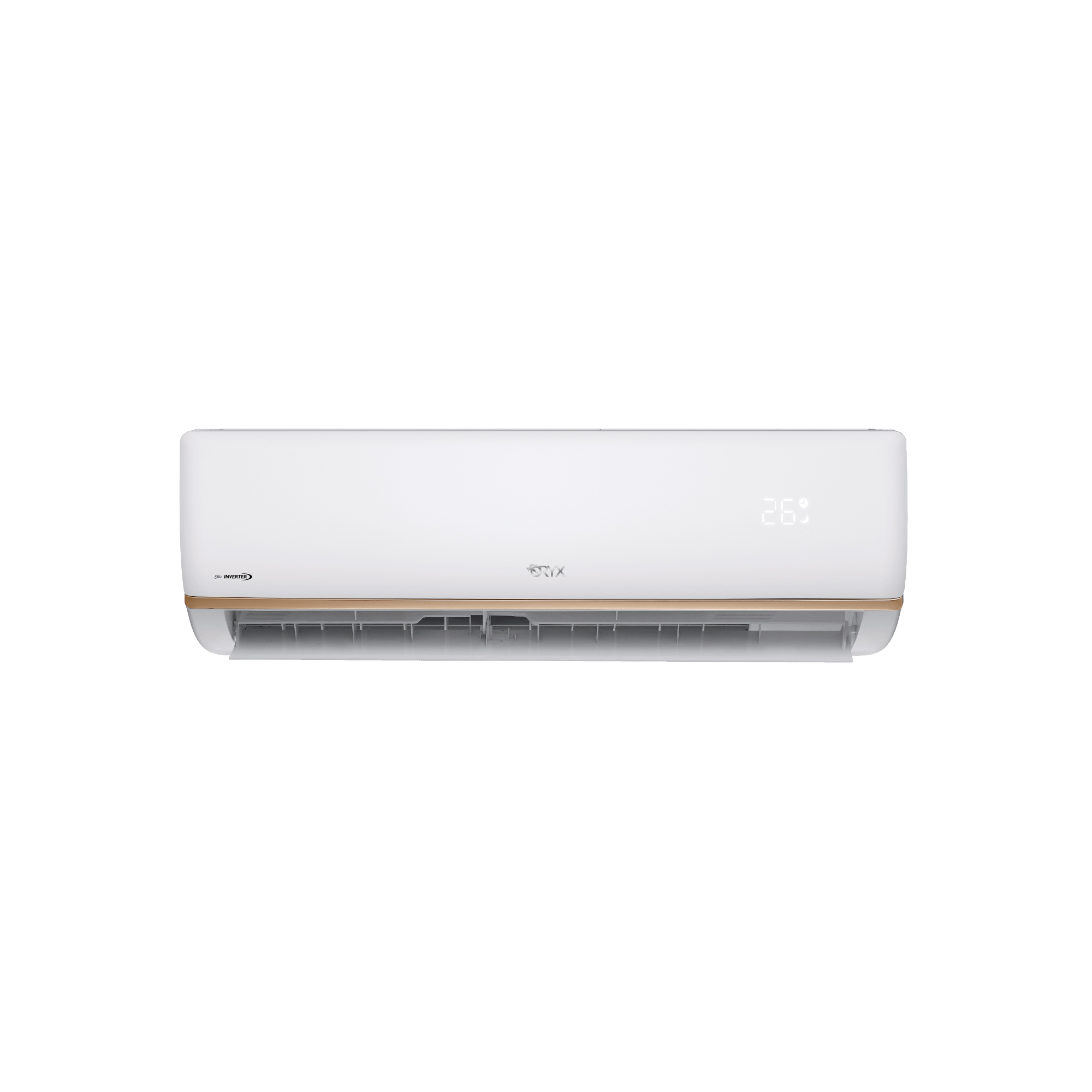

ORYX ELITE Split AC – 1.5 Ton (OASECL-18CI41)

Powerful Cooling. Energy Efficient. Built for Qatar’s Heat.

The ORYX ELITE 1.5 Ton Split AC (OASECL-18CI41) delivers 18,100 BTU/h of powerful cooling, making it ideal for rooms sized 20–35 m². Designed for T3 tropical climate conditions, it ensures reliable performance even during Qatar’s hottest days.

دلائل الميزات

Fast & Efficient Cooling – High-performance inverter compressor for quick temperature drop.
توفير الطاقة – High EER 12.0 Btu/h/W for reduced electricity bills.
Low Noise Operation – Indoor noise as low as 33 dB(A) for a peaceful environment.
Durable Build – Hydrophilic & louver fins with anti-rust coating for long life.
Eco-Friendly Refrigerant – R410A for efficient, eco-conscious cooling.

Technical Specifications

Cooling Capacity: 18,100 BTU/h
Voltage Range: 198V–242V
Indoor Dimensions: 1010×315×220 mm
Outdoor Dimensions: 853×349×602 mm

Split and Floor Standing AC price includes Standard installation With a 5 meter pipe Kit. Additional piping will be with additional extra charges

للانقسام

1 طن – 2.5 طن 75 ريال قطري للمتر

٣ طن ٨٥ ريال قطري للمتر

ذراع خارجي لتكييف سبليت بسعر ١٥٠ ريال قطري

للأرضي

٣ طن - ٥ طن ٨٥ ريال قطري للمتر

ذراع خارجي لحامل الأرضي ٢٠٠ ريال قطري

ORYX model number			OASECL-18CI41
نوع			تبريد فقط
Control type			Remote Controller
Power supply		Ph-V-Hz	1ph 220~240V/50HZ
Voltage Range		V	198V-242V
Cooling (T1)	Capacity	Btu/h	18100(4436~19790)
	Capacity	W	5305(1300~5800)
	Rated power Input	W	1508(270~2600)
	Rated current	A	9.2(1.2~12.0)
	EER	Btu/h/W	12.000
	EER	W/W	3.52
Cooling (T3)	Capacity	Btu/h	16600
	Capacity	W	4865
	Rated power Input	W	1844
	Rated current	A	11.30
	EER	Btu/h/W	9.002
	EER	W/W	2.64
Cooling	Max power Input	W	2600
Cooling	Max current	A	12.0
Heating (H1)	Capacity	W	NA
	Rated power Input	W	NA
	Rated current	A	NA
	COP	W/W	NA
Heating	Max power Input	W	NA
Heating	Max current	A	NA
Moisture removal		Liters/h	1.8
Pressure	High(DP)	MPa	4.5
Pressure	Low(SP)	MPa	1.9
Indoor noise level at cooling	Super	dB(A)	51
	High	dB(A)	49
	Med.	dB(A)	44
	Low	dB(A)	39
	Quite	dB(A)	33
Outdoor noise level		dB(A)	55

Climate type			T3
Power supply			1ph 220~240V/50HZ
Refrigerant		kg	R410A/1.06
ضاغط	Model		C-1RZ140H3CBF
	نوع		Rotary
	Brand		SANYO
Evaporator *rows			Hydrophilic & Louver Fin; Innergroover tube type φ7
Condenser *rows			Louver or Corrugated Fin; Innergroover tube type φ5
Expansion device			Capillary tube
Defrosting system			Microcomputer controlled reverse system
Fan System
Indoor air volume(Cooling/Heating)		m^۳/h	1000
Indoor fan type			Cross flow
Indoor fan motor		model	22001-000726 DC
Indoor fan motor		brand	Broad-ocean/WELLING/LT
Outdoor fan type			Propeller
Outdoor fan motor		model	22001-000555 DC
Outdoor fan motor		brand	WELLING/LT/Broad-ocean/Tongde
Outdoor fan speed		rpm	1000
Connections
Connecting Pipe	Gas	Inches	Φ12(1/2'')
Connecting Pipe	Liquid	Inches	Φ6(1/4'')
Connecting Wiring	Size x Core number		4×1.5
DraiN.Age Pipe			O.D 16mm
Others
Suitable area		m²	20~35
Net dimensions (W x Dx H)	Indoor	mm	1010×315×220
Net dimensions (W x Dx H)	Outdoor	mm	853×349×602
Net weight	Indoor	kg	12
Net weight	Outdoor	kg	28.5
Packing dimensions (W x D x H)	Indoor	mm	1096×390×297
	Outdoor （without piping）	mm	890×385×628
	Outdoor （with piping）	mm	890×385×628
Gross weight	Indoor	kg	15
	Outdoor （without piping）	kg	31.5
	Outdoor （with piping）	kg	32.5
